CUENOD GAS OIL AND DUAL FUEL BURNERS

Cuenod

Applications from 15 kW to 45 000 kW

Prior Industries Australia is the sole Australian representative for Cuenod of Annemasse France. With a history dating back to 1899, Cuenod has developed a reputation as one of Europe’s leading burner manufacturers. Cuenod draw upon innovative technology to offer clients high quality solutions to specific requirements which minimize energy consumption and environmental impact.

Cuenod burners are manufactured to the highest standards of quality control, including European standards EN 676 (Gas Burners), EN 267 (Oil Burners) and International standard ISO 9002 for manufacturing. Additionally, Cuenod burners supplied to the Australian market include gas/oil valve trains and control systems which are fully compliant with all relevant standards and codes.



click to see larger image

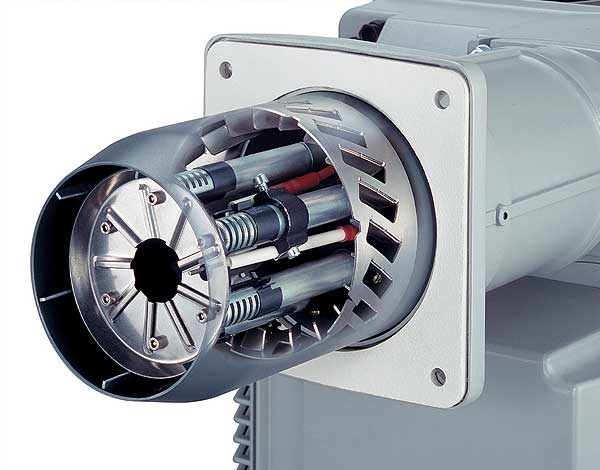

C30 Combustion Head

Cuenod Monoblock Dual Fuel Burners

Cuenod Process Duoblock Oil Burners

PRIOR’s engineers are always available to discuss client’s requirements and make recommendations for specific projects. Through our engineering department, we offer installation and commissioning as well as after sales service and spare parts, ensuring trouble free operation of all Cuenod burners. Cuenod has established an international network of subsidiaries and agents, thus Original Equipment Manufacturers undertaking
overseas projects can be assured of the after sales service and support required.

Through their extensive investment in research and development, Cuenod is able to offer a number of innovative patented systems to further enhance the efficiency and operation of their burner systems. These include:


  • AGP - Proportional Air/Gas Ratio Control System
  • RHP - Burner Ventilation System
  • IME - Multi Stage Injection System to meet the most stringent NOx requirements
  • MDE - Operating Data Memorization System providing instantaneous and historical burner data
  • RTC - Functional housing design and advanced combustion head technology
  • Variatron - Speed Control System for increased turndown, lower electricity consumption and reduced operating costs by extending component life.
  • GEM - Simultaneous Microprocessor control of one or more Servomotors

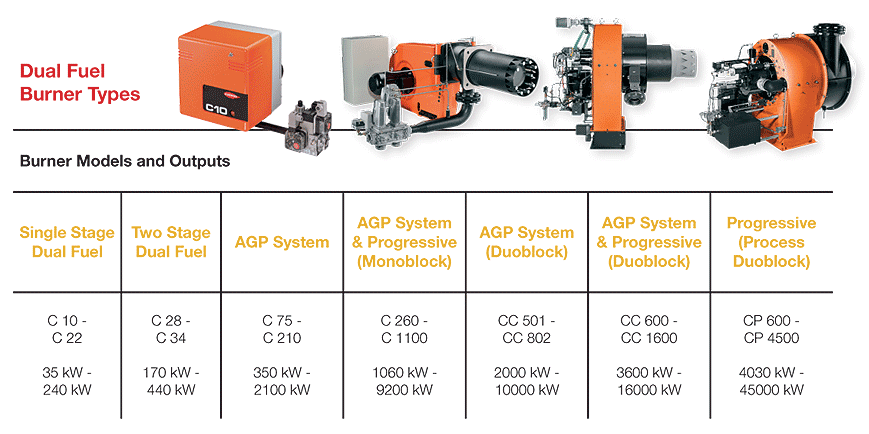

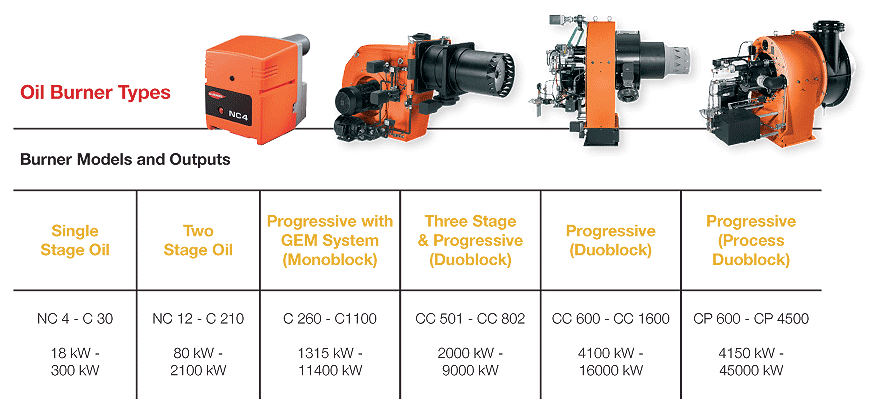

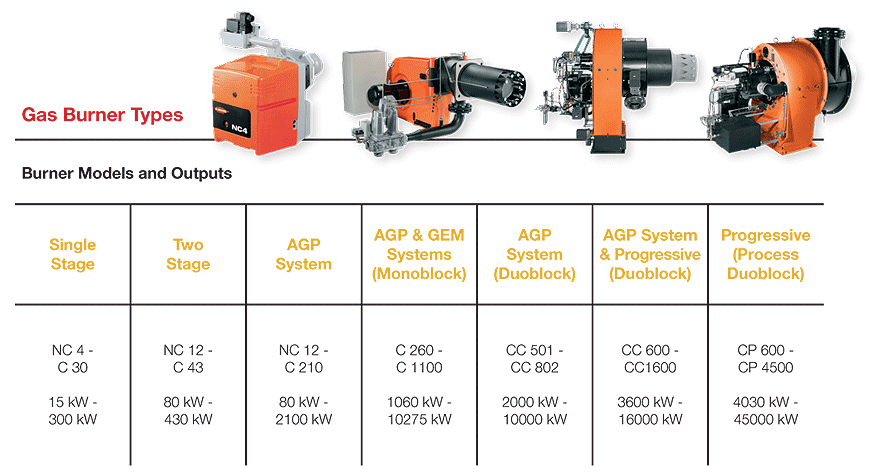

Summary of Cuenod Burner Models
